Lenses for EOS M

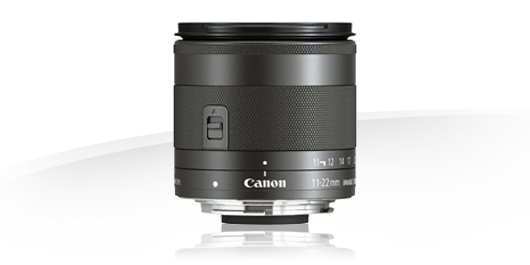

Canon EF-M 11-22mm f/4-5.6 IS STM

Specifications

Specifications in detail

Optical Features / Specifications

  • 35mm Film Equivalent Focal Length (mm)

    18-35

  • Angle of View (Horizontal, vertical, diagonal)

    91°50′–54°30′,


    68°55′–37°50′,


    102°10′–63°30′

  • Lens Construction (Elements/Groups)

    12/9

  • Number of Diaphragm Blades

    7

  • Minimum Aperture

    22 - 32¹

  • Closest Focusing Distance (m)

    0.15

  • Maximum Magnification (x)

    0.30 (at 22mm)

  • Distance Information

    Provided

  • Image Stabilizer OIS1

    3-stops

  • AF Actuator

    STM

Accessories

  • Lens Cap
    E-55
  • Lens Hood

    EW-60E

  • Lens Case/Pouch

    LP814

Physical Specifications

  • Filter Diameter (mm)

    55

  • Max. Diameter x Length (mm)2

    60.9 x 58.2¹

  • Weight (g)

    220

¹ Minimum aperture if using 1/3stop increments

¹ Lens dimensions when in retracted state

  1. Tested under CIPA standards
  2. Lens dimensions when in retracted state
