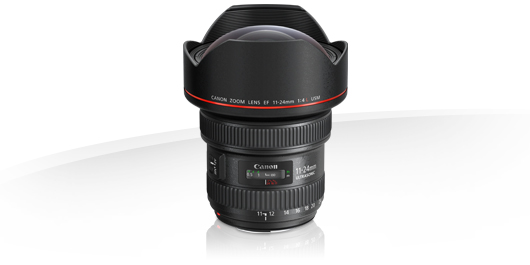

Canon EF 11-24mm f/4L USM Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size

-

35mm film equivalent focal length (mm)

-

Angle of view (horzntl, vertl, diagnl)

117º 10'- 74º,


95º 10' - 53º,


126º 05' - 84º

Lens construction (elements/groups)

16/11

No. of diaphragm blades

9

Minimum aperture

22

Closest focussing distance (m)

0.28 (at 24 mm)

Maximum magnification (x)

0.16 (at 24 mm)

Distance Information

Yes

Image stabilizer

-

AF actuator

Ring USM¹

PHYSICAL SPECIFICATIONS

Dust/moisture resistance*

Yes

Filter diameter (mm)

Filter Holder

Max. diameter x length (mm)

108 x 132

Weight (g)

1180

ACCESSORIES

Lens cap

Lens Cap 11-24

Lens hood

Built-in

Lens case/pouch

LP1424

Rear cap

Lens Dust Cap E

Magnification w/ Extension Tube EF12 II

0.73-0.53¹

Magnification w/ Extension Tube EF25 II

Not Compatible

Extender Compatiblity

Not Compatible

Disclaimer

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

Footnote

¹ Full time Manual Focus

¹ Not Compatible at wide angles
