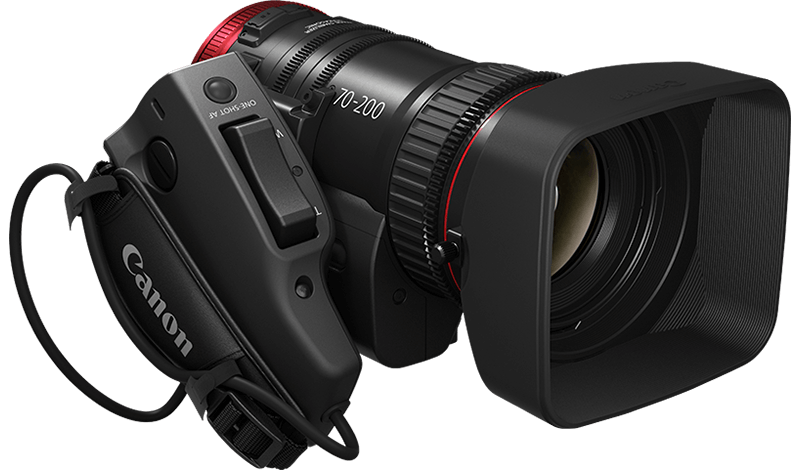

Canon CN-E70-200mm T4.4 L IS
Specifications

CN-E70-200mm T4.4 L IS
Back to product overview

Specifications

Mount: EF

Sensor coverage: Super

Flange back adjustment: Yes

Focal length: 70-200 (140-400)* mm (*with 2x EF extender)

Maximum relative aperture: (T No.) 1:4.4 at 70-200mm, (F No.)1:4 at 70-200mm

Built in servo: Yes, with speed control

Weight: 1.25 kg

Image Stabilisation: 3 modes

View all

Specifications in detail

General Specifications

Mount

EF

Image Coverage

Super 35

Built-in extender

None

Focal Length

70-200mm

Maximum Relative Aperture

(T No.) 1:4.4 at 70-200mm
(F No.) 1:4 at 70-200mm

Angular Field of View

19.9°× 11.3°
7.0°× 4.0° 1
21.2°× 11.3°
7.5°× 4.0° 2

M.O.D ( from Image Plane )

1.2m

Object Dimensions at M.O.D.

31.3×17.5cm　[at 70mm]
11.5×6.4cm　 [at 200mm] 3
33.3×17.5cm　[at 70mm]
12.2×6.4cm　 [at 200mm] 4

Approx. Size (W×H×L)

93.4 × 107.2 × 182.3mm

Approx. Mass

1.25kg　( incl. servo unit)

  1. Imaging screen size: 24.6mm×13.8mm, Aspect ratio 1.78:1
  2. Imaging screen size: 26.2mm×13.8mm, Aspect ratio 1.9:1
  3. Imaging screen size: 24.6mm×13.8mm, Aspect ratio 1.78:1
  4. Imaging screen size: 26.2mm×13.8mm, Aspect ratio 1.9:1
