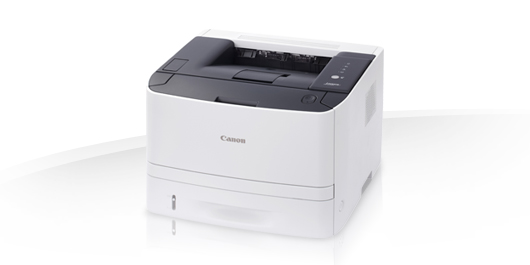

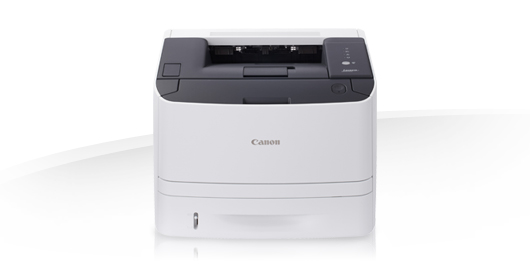

Canon i-SENSYS LBP6310dn Specifications


Print Speed

33 ppm mono (A4)

Printing Method

Monochrome laser beam printing

Print Quality

Up to 2400 x 600 dpi with Automatic Image Refinement

Print Resolution

600 x 600 dpi

Warm-up Time

Approx. 10 seconds or less from power on

First Page Out Time

Approx. 6 seconds or less

Duty Cycle

Max. 25,000 pages per month ¹

Print Margins

5 mm-top, bottom, left and right


Paper Input (Standard)

250-sheet cassette

50-sheet multi-purpose tray

Paper Input (Option)

500-sheet cassette

Paper Output

150-sheet face down

Media Types

Plain paper, Heavy Paper, Transparency, Label, Index card, Envelope

Media Sizes

Cassette (Standard and optional):

A4, B5, A5, A6, Legal, Letter, Executive, 16K,Custom sizes: Width 105 mm to 215.9 mm; Length 148.0 mm to 355.6 mm.

Multi-purpose tray:

A4, B5, A5, A6, Legal, Letter, Executive, 16K, Envelope DL, Envelope COM10, Envelope C5, Envelope B5, Envelope Monarch, Index Card, Custom sizes: Width: 76.2 to 215.9mm Length: 127.0 to 355.6mm

Media Weights

Cassette (Standard and optional): 60 to 120 g/m²

Multi-purpose tray: 60 to 163 g/m²

Double Sided Printing



Power Requirements

220-240V (±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 1170 W or less

Active: Approx. 540 W

Standby: Approx. 9 W

Sleep: 1W

Typical Electricity Consumption (TEC): 1.3 kWh/week

Lot26 (

Noise Level

Sound power ²:

Active: 7.06 B or less

Standby: Inaudible

Sound pressure ²:

Active: 54.2 dB(A) or less

Standby: Inaudible

Dimensions (W x D x H)

400 mm x 376 mm x 263 mm


Approx. 11.2 kg

Operating Environment

Temperature: 10 to 30ºC (50 to 86ºF)

Humidity 20 to 80% RH (no condensation)

Control Panel

4 LED indicators

1 Operation key



16 MB

Printer Languages

Canon Advanced Printing Technology (CAPT)

Interface and Connectivity

USB 2.0 High-Speed,


Software and Printer Management

NetSpot Device Installer, Remote User Interface (RUI)

Operating Systems Compatibility

Windows XP(32bit/64bit)/ Vista (32bit/64bit)/ 7 (32bit/64bit)/ 8 (32bit/64bit)/ Server 2003 (32bit/64bit) / Server 2008(32bit/64bit) / Server 2008 R2 (64bit)/

Mac OS10.5.x and up ¹

Linux ²



All-in-One Cartridges

Standard: Cartridge 719 (2,100 pages ¹)

High yield: Cartridge 719 H (6,400 pages ¹)



PAPER FEEDER PF-44 (500-sheet cassette)


All specifications subject to change without notice


¹ Duty cycle is defined as the maximum number of printed pages for a single peak month. Any usage above the recommended duty cycle may decrease the life of the product

² Declared noise emission in accordance with ISO 9296

¹ Web distribution only. English driver only. The driver will be released in March 2013

² Web distribution only. English driver only. The driver will be released in July 2013

¹ Based on ISO/IEC 19752
