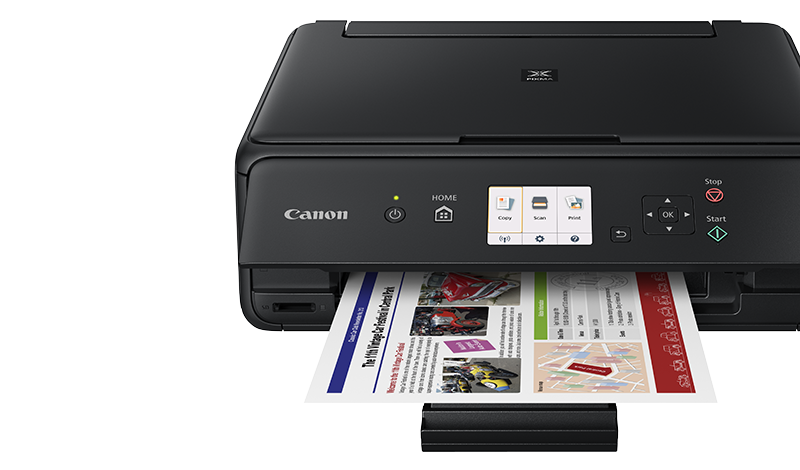

PIXMA TS5050 Series
Specifications

Back to product overview

Key Features

Use and share wirelessly

Canon PRINT app

Optional high yield inks

Print from and scan to the cloud*

Print from SD memory cards

Large, clear display

Print 13x13 cm (5”x5”) square photos

Only change the ink that runs out

10x15 cm (4”x6”) photos in just 39 seconds

View all

Specifications in detail

General Specifications

Model Numbers

PIXMA TS5050 (BLACK)
PIXMA TS5055 (BLACK)
PIXMA TS5053 (GREY)
PIXMA TS5051 (WHITE)¹

Functions

Wireless Print, Copy, Scan, Cloud Link

Printer Specifications

Print Resolution

Up to 4800² x 1200 dpi

Print Technology

5 Individual Ink Tanks (PGBK, BK, C, M, Y)
ChromaLife100 inks

Mono Print Speed

Approx. 12.6 ipm³

Colour Print Speed

Approx. 9.0 ipm⁴

Photo Print Speed

Borderless 10x15cm : Approx. 39 seconds⁵

Borderless Printing

Yes (A4, Letter, 20x25cm, 13x18cm, 10x15cm, 13x13cm)

Two Sided Printing

Manual operation

Cartridges And Yields

Standard Ink Cartridges

5 individual ink tanks
PGI-570PGBK (Pigment Black)
CLI-571BK (Black)
CLI-571C (Cyan)
CLI-571M (Magenta)
CLI-571Y (Yellow)

Optional XL Ink Cartridges

High yield XL ink tanks
PGI-570PGBK XL (Pigment Black)
CLI-571BK XL (Black)
CLI-571C XL (Cyan)
CLI-571M XL (Magenta)
CLI-571Y XL (Yellow)

Cartridge Yield (Plain paper)

A4 Colour Document⁶
Pigment Black: 300 pages
Pigment Black XL: 500 pages
Black: 1795* pages
Black XL: 4000* pages
Cyan: 345 pages
Cyan XL: 715 pages
Magenta: 306 pages
Magenta XL: 645 pages
Yellow: 347 pages
Yellow XL: 715 pages
* Estimated supplemental yield

Cartridge Yield (Photo print)

10x15cm photo⁷
Pigment Black: 2145* photos
Pigment Black XL: 4350* photos
Black: 376* photos
Black XL: 810* photos
Cyan: 121 photos
Cyan XL: 257 photos
Magenta: 136 photos
Magenta XL: 340 photos
Yellow: 127 photos
Yellow XL: 294 photos
* Estimated supplemental yield

Paper Support

Paper Types

Plain Paper
High Resolution Paper (HR-101N)
Photo Paper Pro Platinum (PT-101)
Photo Paper Plus Glossy II (PP-201)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-gloss (SG-201)
Glossy Photo Paper "Everyday Use" (GP-501)
Matte Photo Paper (MP-101)
Envelope

Maximum Paper Input

Rear tray: Max. 100 sheets (plain paper)

Paper Sizes

A4/A5/B5/LTR/LGL/20x25cm/13x18cm/10x15cm/Envelopes(DL, COM10)/Square (13x 13cm)

Paper Weight

Plain paper: 64 - 105 g/m²
Canon photo paper: up to 300 g/m²

Scanner Specifications

Scanner Type

CIS flatbed photo and document scanner

Scanner Resolution (Optical)

1200 x 2400 dpi⁸

A4 Scan Speed

Approx. 19 sec⁹

Scanning Depth (Input / Output)

Colour: 48 bit / 24 bit
Greyscale: 16 bit / 8 bit

Maximum Document Size

216 x 297 mm

Copier Specifications

Copy Speed

sFCOT: Approx. 20 sec¹⁰
sESAT: Approx. 6.0 ipm¹¹

Multiple Copy

99 copies max.

Copy Functions

Document Copying, Photo Copying, Borderless copy, 2-on-1

Copy Zoom

25 - 400% (in 1% increments)
Fit to page
A5 to A4, B5 to A4, A4 to A5 and A4 to B5

Interface

Display Type & Size

7.5cm LCD (TFT colour)

Display Languages

33 Languages Selectable: Japanese/English(mm & inch)/German/French/Italian/Spanish/Dutch/Portuguese/Norwegian/Swedish/Danish/Finnish/Russian/Czech/Hungarian/Polish/Slovene/Turkish/Greek/Simplified Chinese/Traditional Chinese/Korean/Indonesian/Slovakian/Estonian/Latvian/Lithuanian/Ukrainian/Romanian/Bulgarian/Thai/Croatian/Vietnamese

Interface Type - PC / Mac

Hi-Speed USB (B Port)
Wi-Fi: IEEE802.11 b/g/n
Wi-Fi Security: WPA-PSK, WPA2-PSK, WEP, Admininstration password
Wireless LAN Frequency Band: 2.4GHz

Interface Type - Other

PIXMA Cloud Link (from smartphone or tablet only)
Canon PRINT Inkjet/SELPHY app
Canon Print Service Plugin (Android)
Google Cloud Print
Apple AirPrint
Wi-Fi Direct
Access point mode
WLAN PictBridge
Memory Card Slot
Mopria (Android)

Compatible Memory Cards

SD Card, SDHC Card, miniSD Card*, micro SD Card*, mini SDHC Card*, micro SDHC Card*
*Using recommended adapter - not supplied

Software

Supported Operating Systems

Windows 10
Windows 8.1 (including Windows 8.1 Update), Windows 8
Windows 7, Windows 7 SP1
Windows Vista SP2
Note: For Windows, .NET Framework 4.5.2 or 4.6 is required
Mac OS X v10.8.5 - OS X v10.11

Supported Mobile Systems

iOS,Android,Windows RT,Windows 10 Mobile

Minimum System Requirements

Windows: 3.1GB disk space, Internet Explorer 8
Mac: Internet connection, 1.5GB disk space, Safari 5
Display: 1024 x 768 XGA

Software Included

MP Driver including Scanning Utility
My Image Garden with Full HD Movie Print¹²
Quick Menu
Easy-WebPrint EX (download)¹³

Physical Features

Weight

approx. 5.5 kg

Dimensions (W x D x H)

approx. 372 x 315 x 126 mm

Acoustic Noise Levels

approx. 44.5dB(A)¹⁴

Recommended Operating Environment

Temperature: 15-30°C
Humidity: 10-80%RH (no dew condensation)

Power Source

AC 100-240V, 50/60Hz

Power Consumption

Off: Approx. 0.2 W
Standby (connected to PC via USB): Approx. 0.8 W (scanning lamp off)
Standby (all ports connected): Approx. 1.6 W (scanning lamp is off)
Time to enter Standby mode: 12 minutes
Copying: Approx. 12 W¹⁵

All specifications subject to change without notice.

Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.

Ink yield may vary depending on texts/photos printed, applications software used, print mode and type of paper used. For yield information see www.canon-europe.com/ink/yield

Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.

Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warming up time.

All brand and product names are trademarks of their respective companies.

Microsoft, Windows and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Some colours may not be available in your region.
Ink droplets can be placed with a minimum pitch of 1/4800 inch
A4 document print speed on plain paper is measured based on average of ESAT in Office Category Test of ISO/IEC 24734 standard.
A4 document print speed on plain paper is measured based on average of ESAT in Office Category Test of ISO/IEC 24734 standard.
Photo print speed is based on default driver setting using ISO/JIS-SCID N2 standard on Canon Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
Declared yield value in accordance with ISO/IEC 24711 standard. Values obtained by continuous printing.
Declared yield value in accordance with ISO/IEC 29102. Values obtained by continuous printing.
Optical resolution is a measure of maximum hardware sampling resolution based on ISO 14473 standard. When scanning in high resolution, the maximum scan size is restricted.
Colour document scan speed is measured with ISO/IEC 29183 Target A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
Colour document copy speed is measured based on average of sFCOT and sESAT in Performance Test of ISO/IEC 29183 standard.
Colour document copy speed is measured based on average of sFCOT and sESAT in Performance Test of ISO/IEC 29183 standard.
Full HD Movie Print is available for MOV and MP4 movie files created by select Canon digital cameras and camcorders. Requires installation of software bundled with Canon video or digital camera, from which the movie was captured. MOV files require: ZoomBrowser EX / ImageBrowser (version 6.5 or later), MP4 files require: ImageBrowser EX (version 1.0 or later).
Easy-WebPrint EX requires Internet Explorer 8 or later
When printing ISO/JIS-SCID N2 pattern on 10x15cm Photo Paper Plus Glossy II using default settings.
When copying ISO/JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.
