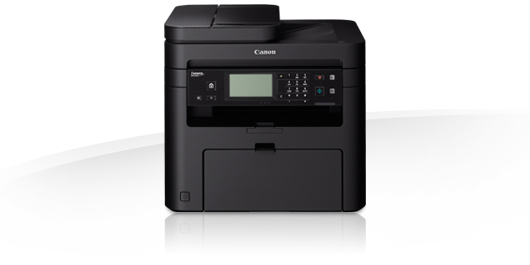

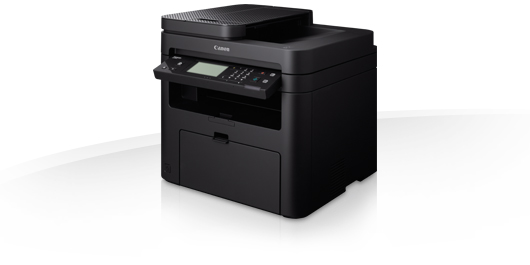

Canon i-SENSYS MF226dn Specifications

Machine type

Mono Laser All-in-One

Available functions

Print, Copy, Scan and Fax

Print speed

Up to 27 ppm (A4)

Printing method

Monochrome laser beam printing

Print quality

Up to 1200 x 1200 dpi with Image Refinement

Print resolution

600 x 600 dpi

First Print Out Time

Approx. 6.0 sec or less

Double sided printing

Automatic

Printer languages

UFRII LT

Print margins

5 mm-top, bottom, left and right (Other sizes than Envelope)

10 mm-top, bottom, left and right (Envelope)

Toner saver mode

Yes

Copy speed

Up to 27 ppm (A4)

First Copy Output Time (FCOT)

Approx. 9 seconds or less

Copy resolution

Up to 600 x 600 dpi

Copy modes

Text, Text/Photo, Text/Photo+, Photo

Double sided copying

1-sided to 2-sided (Automatic)

Multiple copy

Up to 99 copies

Reduction / Enlargement

25-400% in 1% increments

Toner saver mode

Yes

Other features

Memory sort, 2 on 1, 4 on 1, ID Card Copy

Type

Colour

Scan resolution

Optical: Up to 600 x 600 dpi

Enhanced: Up to 9600 x 9600 dpi

Colour scanning depth

24- bit

Greyscales

256 levels

Compatibility

TWAIN, WIA

Max. scan width

216 mm

Modem speed

Super G3 33.6kbps

Receive mode

FAX Only, Manual, Answering, Fax / Tel Auto SW

Fax resolution

Standard: 200 x 100 dpi

Fine: 200 x 200 dpi

Photo: 200 x 200 dpi

Super fine: 200 x 400 dpi

FAX memory

Up to 256 pages¹

Speed dials

Max. 104 (including 4 one-touch dials)

Group dials/destinations

Max. 103 destinations

Sequential broadcast

Max. 114 locations

Memory backup

Flash Memory Back-up

Double sided faxing

Yes (Transmit)

Other features

FAX Forwarding, Dual Access, Remote Reception, PC FAX(TX only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Result Reports, Fax Activity Management Reports

Scanner type

Flatbed and Automatic Document Feeder (ADF)

Paper input (Standard)

250-sheet tray

1-sheet manual feed slot

35-sheet ADF

Paper output

100-sheet

Media types

Plain, heavy, Recycled, Transparency, Label, Envelope

Media sizes

Tray:

A4, B5, A5, LGL, LTR, STMT, EXE, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, FLS, 16K, IndexCard, AFLS, Indian LGL

Envelope:

COM10, Monarch, C5, DL,

Custom: Min. 76.2 x 210mm to Max. 216 x 356mm

Multi-purpose tray:

A4, B5, A5, LGL, LTR, STMT, EXE, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, FLS, 16K, IndexCard, AFLS, Indian LGL

Envelope: COM10, Monarch, C5, DL,

Custom(Min. 76.2 x 127mm to Max. 216 x 356mm)

ADF:

A4, B5, A5, B6, LTR, LGL

Min. 105 x 148mm to Max. 356 x 216mm

Media weights

Tray: 60 to 163 g/m²

Manual feed slot: 60 to 163 g/m²

Interface type

USB 2.0 Hi-speed,10BASE-T/100BASE-TX

Operating System compatibility

Windows®8.1

Windows®8

Windows®7

Windows®XP

Windows®Vista

Windows® Server 2012 R2¹

Windows® Server 2012¹

Windows® Server 2008 R2¹

Windows® Server 2008¹

Windows® Server 2003¹

Mac OS X 10.5.8 or later

Linux²³

Software and printer management

Remote User Interface (RUI), Printer driver, Fax driver, Scanner driver, MF Toolbox, AddressBookTool, Presto! PageManager, SSID Tool, Toner Status Tool

Duty cycle

Max. 10,000 pages per month

Memory

256 MB

Control panel

6-line LCD B&W Touch Screen

Dimensions with trays (W x D x H)

390mm x 441mm x 360mm

Installation space (W x D x H)

429mm x 596mm x 630mm

Weight

Approx 12.2 Kg

Operating environment

Temperature: 10 to 30ºC (50 to 86ºF)

Humidity: 20 to 80% RH (no condensation)

Power Source

AC 220～240V: 50/60Hz

Power Consumption

Maximum: Approx. less than 1300 W

Active: Approx. less than 570 W

Standby: Approx. less than 5.8 W

Sleep mode: Approx. 1.7 W

Typical Electricity Consumption (TEC): 1.0 kWh/week

Lot26 (http://www.canon-europe.com/For_Work/Lot26/index.aspx)

Noise Levels

Sound pressure Level¹:

Active: 50dB (Quiet Mode: 45dB)

Standby: Inaudible

Sound Power Level¹:

Active: 6.5B (Quiet Mode: 6.0B)

Standby: 43dB or less

Cartridges

Cartridge 737 (2,400 pages¹)²
