1.5 type (18.7 mm x 14.0 mm) Canon high-sensitivity CMOS
Approx. 12.8M (Aspect ratio: 3:2)
Approx. 13.1M (Aspect ratio: 4:3)
Multi-aspect Sensor - 3:2 (default), 4:3
Primary Colour
DIGIC 6 with iSAPS technology

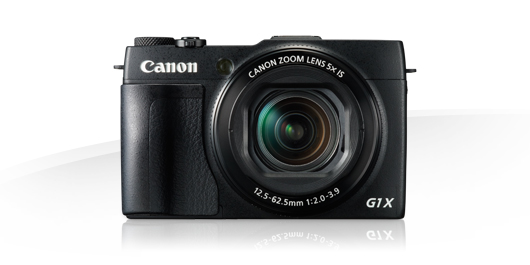

12.5 – 62.5 mm (35 mm equivalent: 24 – 120 mm)
Optical 5x
ZoomPlus 10x
Digital Approx. 4x (with Digital Tele-Converter Approx. 1.6x or 2.0x¹).
Combined Approx. 20x
f/2.0-f/3.9
14 elements in 11 groups (1 double sided aspherical UA lens and 2 double-sided aspherical lenses)
Yes (lens shift-type), approx. 3.5-stop¹. Intelligent IS with 5-axis Enhanced Dynamic IS
TTL
AiAF (31-point, Face Detection or Touch AF with Object and Face Select and Track), 1-point AF (any position is available or fixed centre)
Single, Continuous, Servo AF/AE¹, Touch AF
Size (Normal, Small)
Yes, via customisable buttons
Yes
Yes, plus MF Peaking & AF + MF
Yes
5 cm (W) from front of lens in macro
Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (centre or linked to Face Detection AF or AF frame)
Yes, via customisable buttons
+/- 3 EV in 1/3 stop increments
Manual and automatic dynamic range correction
Automatic shadow correction
ND Filter (3 stop)
1/3 – 2 EV in 1/3 stop increments
AUTO, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800
1 – 1/4000 sec. (factory default)
60 – 1/4000 sec. (total range – varies by shooting mode)
TTL
Auto (including Face Detection WB), Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Underwater, Custom 1, Custom 2
Multi-area WB correction available in Smart Auto
White Balance Compensation
White Balance Compensation in Underwater mode
Colour adjustment in Star Mode
sRGB
Optional Electronic Viewfinder EVF-DC1

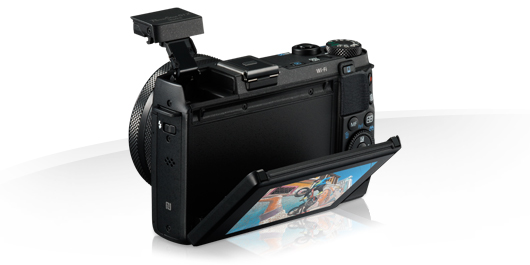

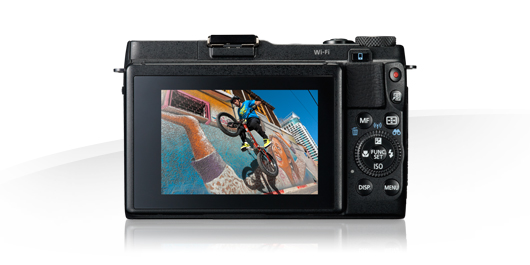

Tilt type 7.5 cm (3.0”) sRGB PureColor II Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. In-cell capacitive type
Approx. 100%
Adjustable to one of five levels. Quick-bright LCD
Auto, Manual Flash On / Off, Slow Synchro
Yes.
Fastest speed:
1/2000 sec. (built-in flash)
1/250 sec. (external flash)
1/4000 sec. (external using high-speed synchro)
Yes
+/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE, Smart Flash Exposure
Yes
3 levels with internal flash (up to 19 levels with external EX Speedlites 270EX II and 430EX II. 22 levels with 580EX II, 600EX and 600EX-RT¹)
Yes
50 cm – 6.8 m (W) / 50 cm - 3.5 m (T)
E-TTL with EX series Speedlites¹
Smart Auto (58 scenes detected), Program AE, Shutter priority AE, Aperture priority AE, Manual, Custom 1, Custom 2, Hybrid Auto, Auto, Creative Shot, SCN (Portrait, Smart Shutter (Smile, Wink Self-Timer, FaceSelf-Timer), Star (Star Nightscape, Star Trails, Star Portrait, Star Time-Lapse Movie), Handheld Night Scene, Underwater, Snow, Fireworks), Creative Filters (High Dynamic Range, Nostalgic, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Monochrome, Super Vivid, Poster Effect), Movie
Smart Auto (21 scenes detected), Standard, Program AE, Portrait, Nostalgic, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Underwater, Snow, Fireworks, iFrame Movie
My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color)
Single, Auto Drive, Continuous, Continuous with AF, Self-Timer
Approx. 5.2 shots/sec until memory card becomes full¹
with AF: Approx. 3.0 shots/sec
with Live View: Approx. 3.1 shots/sec
(all speeds are until memory card becomes full)²³
3:2 - (RAW, L) 4352 x 2904, (M1) 3072 x 2048, (M2) 2048 x 1368, (S) 640 x 424
4:3 - (RAW, L) 4160 x 3120, (M1) 3072 x 2304, (M2) 2048 x 1536, (S) 640 x 480
16:9 - (RAW, L) 4352 x 2248, (M1) 3072 x 1728, (M2) 1920 x 1080, (S) 640 x 360
1:1 - (RAW, L) 3120 x 3120, (M1) 2304 x 2304, (M2) 1536 x 1536, (S) 480 x 480
4:5 - (RAW, L) 2496 x 3120, (M1) 1840 x 2304, (M2) 1232 x 1536, (S) 384 x 480
Resize in playback (M2, S)
RAW, Superfine, Fine
(Full HD) 1920 x 1080, 30 fps (HD) 1280 x 720, 30 fps, (L) 640 x 480, 30 fps
Star Time-Lapse Movie (Full HD) 30, 15 fps
Miniature Effect (HD, L) 6fps, 3fps, 1.5 fps
Hybrid Auto (HD) 30 fps
iFrame Movie (Full HD) 30fps
(Full HD & HD) Up to 4 GB or 29 min. 59 sec.¹
(L and M) Up to 4 GB or 1 hour²
(Star Time-Lapse Movie) Up to 32 sec
JPEG compression (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system and DPOF ver. 1.1 compliant), RAW (14bit, Canon original RAW 2nd edition), RAW+JPEG
MP4 [Video: MPEG4-AVC (H.264), Audio: MPEG2 AAC-LC (stereo)]
iFrame
Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
Yes (via USB or Wireless LAN)
GPS via mobile (linked to compatible smartphone)
Yes, during shooting and playback
My Menu customisation available
Image tagging feature
Yes
Yes, live histogram
Approx. 2x – 10x
Approx. 2 or 10 sec., Custom
English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew
Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)
HDMI Micro Connector (HDMI-CEC compatible) A/V output (PAL/NTSC)
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with NFC support¹
SD, SDHC, SDXC (UHS Speed Class 1 compatible)
Windows 8 / 8.1 / 7 SP1 / Vista SP2 / XP SP3
Mac OS X 10.7, 10.8, 10.9
For Wi-Fi connection to a PC:
Windows 8 / 8.1 / 7 SP1 only
Mac OS X 10.7 / 10.8.2 or later / 10.9
ImageBrowser EX
CameraWindow, PhotoStitch, Map Utility
Digital Photo Professional for RAW development
Rechargeable Li-ion Battery NB-12L (NB-12L battery and charger supplied)
Approx. 240 shots
Eco mode approx. 300 shots
Approx. 300 min. playback
Optional, AC Adapter Kit ACK-DC100
Soft Case DCC-1820
PowerShot Neck Strap NS-100
Waterproof Case (40m) WP-DC53
Waterproof Case Weight WW-DC1
Lens Hood LH-DC80
Filter Adapter FA-DC58E (Compatible with Canon 58mm Filters: Circular Polarizing Filter PL-C B, Neutral Density Filters ND4-L & ND8-L, Protect Filter, UV Filter, Skylight Filter, Softmat Filter No.1 & 2)
Canon Speedlites (including 270EX II, 320EX, 430EX II, 580EX II, 600EX, 600EX-RT¹)
Speedlite Transmitter ST-E2, Off-Camera Shoe Cord OC-E3, Bracket BKT-DC1, Speedlite Bracket SB-E2
Remote Switch RS-60E3
AC Adapter Kit ACK-DC100, Battery Charger CB-2LGE
Electronic Viewfinder EVF-DC1
(0.48 type), 4:3 aspect ratio, Approx. 2,360,000 dots, 100% coverage
Canon AV cable AVC-DC400ST
Interface cable IFC-400PCU
0 – 40 °C, 10 – 90% humidity
116.3 x 74.0 x 66.2 mm
Approx. 558 g (including battery/batteries and memory card)
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.
Subject to change without notice.
¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350mm (35mm equivalent) are measured at 350mm.
¹ Some settings limit availability.
¹ Not all functions of the flash are supported.
¹ Sustained continuous shooting function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject.
² Under conditions where the flash does not fire.
³ Depending on memory card speed / capacity / compression setting.
¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
¹ Not all functions of the flash are supported.
¹ Depending on the image size selected.
¹ Not all functions of the flash are supported.
