CAMERA
Sensor

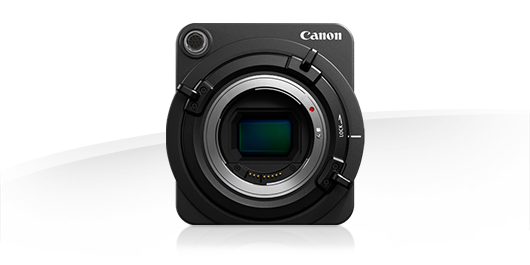

Super 35mm CMOS Sensor
Filter
RGB Primary Colour Filter (Bayer array)
Effective pixels per sensor
Approx. 8.29MP (3840 x 2160)
Minimum illumination
59.94 Hz mode: 0.015 lux. 50Hz mode: 0.013 lux
ND filter
Yes, 2 Glass ND filters (1/8, 3 stops or 1/64 , 6 stops). Automatic / Manually selected electronic control
Horizontal Resolution
Depends on the lens used.
Lens Mount

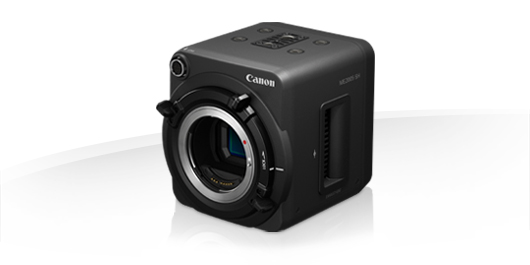

Canon EF mount with Cinema Lock
Focus control
Manual Focus using lens or via RC-V100 Remote Control; One Shot AF via assignable button, Dual Pixel CMOS AF with compatible EF, EF-L and EF-S Lenses
Iris control
Manual; 1/2, 1/3 stop increments or Fine (approx 1/8 stop). Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation)
Aperture range
Depending on selected lens
Image stabilization
Depending on selected lens
Digital Tele Converter
Yes : X2/ X4/X8 magnification
Type
DIGIC DV 4
Sampling accuracy
YCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI
Bit depth
10bit, 8bit effective
RECORDING
Video storage media
External Recording Device
Recording file format
Depending on External Device
Recording frame rate
3G/HD-SDI Output: 1920x1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
1280x720: 59.94P/50P/29.97P/25P/23.98P
HDMI Output: 1920x 1080: 59.94P/59.94i/50P/50i/29.97PsF/25PsF
1280x720: 59.94P/50P
640x480: 59.94P
768x576: 50P
Slow/Fast motion
No
Interval Record
No
Frame Record
No.
Pre Record (cache record)
No
Scan Reverse
No
Custom Picture Options
Nine Custom Picture options: Canon Log, Wide DR, EOS Standard, CP1 - CP6 . User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance. Adjustable for Chroma Key performance¹
HD->SD conversion
No
Audio Recoring
48kHz, 16-bit 2 Channel Linear PCM
SYSTEM
Automatic Exposure Settings
Shutter Priority, Aperture Priority, Auto Gain Control (AGC)¹
Audio in
3.5mm stereo mini jack, plug-in power mic supported
Headphone output
No
HDMI
Yes. Output only,
USB
No
3G/HD-SDI output
Yes, X2; Output 1 OSD compatible, Output 2 Clean output only.
Time code
No
Genlock
Yes, input only, BNC
Component out
No
AV terminal
No
DC input
Yes x2, 4-Pin XLR, 2-Pin connection. Input 11 - 17V
Lens Terminal
Yes, 12-pin connector
Remote Control Terminal
Yes, x2: Remote A: 2.5mm mini jack/Remote B: Circular 8-pin . Both utilise Canon Unique Protocol.
Memory Card connector
Yes, microSD card (for firmware update only, no recording capability)
Colour Bars
Yes, SMPTE, EBU and ARIB depending on system frequency
Tally lamp
No
Custom key
No
User Assigned Functions
Yes, 3 buttons. 4 functions available if using RC-V100 accessory
Assignable items:One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Bar / Set WB /Tele-converter / Infrared / External Rec / Custom Picture /
Camera Mode A/M. These items work with the RC-V100 remote controller.
Custom Dial
No
SHOOTING FUNCTIONS
Exposure metering
Backlight, Standard, Spotlight
Exposure compensation
Yes: ±2.0, ±1.75, ±1.50, ±1.25, ±1.0,±0.75, ±0.50, ±0.25 or ±0
Exposure Lock
No
Auto Gain Control setting
Yes , OFF (56dB) or value from 30dB to 54 dB (in 3 dB increments)
Dynamic Range
Canon Log/Wide DR mode: 800%/12 stops at 9.0dB (Approx. ISO 900)
Gain setting
0dB to 56dB in 3dB intervals.
Equivelent ISO Range (Approx.)
320 - 204800
Control Modes
Manual 1/4 stop increments, Auto (combined function combining Iris, Gain, Shutter and ND filter operation)
Shutter speed
1/3 sec - 1/2000 sec depending on recording mode and system frequency
Shutter Angle
No
Slow Shutter (SLS)
No
Scan Reverse
Yes
Clear Scan
No
Infrared shooting mode
Yes: IR Cut-out filter, electrically operated.
Built-in IR lamp
No
Auto
YES
Preset
Daylight/Tungsten
Shockless WB
Yes, via Custom Function Menu
Manual setting
Set A, Set B (Default 5,500K)Kelvin ( 2000K - 15000K)
Auto Black Balance
Yes
Countup system
No
Start value setting
No
Recording
Linear PCM 48 kHz 16-bit digital conversion, 2 channels
ACCESSORIES
Supplied
2-pin power adapter
Optional
RC-V100 remote Control Unit, RS-422 8-pin remote cable RR-10 (10m) / RR-100 (100m), AC-E19 Compact Power Adapter
Operating Voltage
DC: 11 - 17V via 4-pin XLR or 2pin connector
Power Consumption
11W (Approx.)
MISCELLANEOUS
Dimensions
102mm x 116mm x 113mm (W xH x D) 4.0 x 4.6 x 4.4 inches
Weight (camera only)
Approx. 1.0 kg (2.2 lbs) body only
Operating
Approx. 0°C to 40°C, (85% (relative humidity), Approx. -5 to 45°C 60% relative humidity)
Disclaimer
All specifications are subject to change without notice
All specifications are subject to change without notice
Footnote
¹ Firmware upgrades may be required to enable all camera features. Visit the Canon Support website for more information, or contact your local Canon representative.
