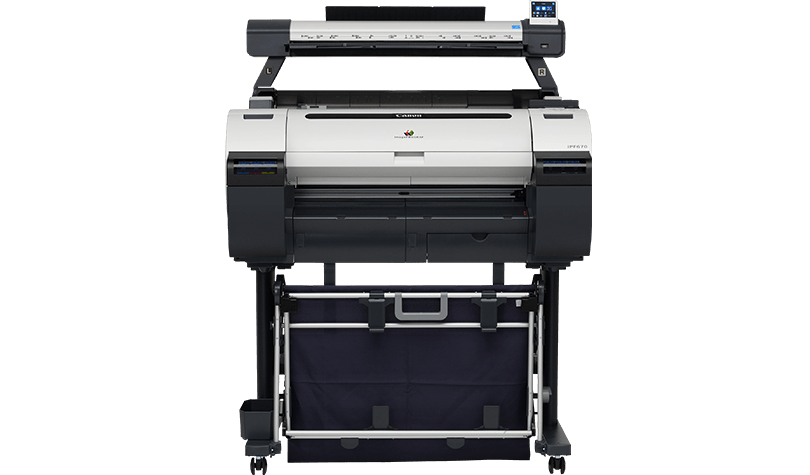

imagePROGRAF iPF670 MFP L24e

Key Features

Scan technology

Single sensor

Optical resolution

600 dpi

Scan width

24 inches

Maximum scan speed


Scan accuracy

0.2% +/- 1 pixel

Ease of use

3” Touch screen

View all

Specifications in detail

SCANNER TECHNOLOGY (Scanner is manufactured by Global Scanning in the United Kingdom)

Scan Technology

SingleSensor with multiple LED illumination

Optical resolution


Scan speed

300/300dpi Draft = 1inch/sec colour, 3inch/sec mono
300/600dpi Standard = 1inch/sec colour, 3inch/sec mono
600/600dpi Best = 0.5inch/sec colour, 1.5inch/sec mono

200dpi Draft = 1inch/sec colour, 3inch/sec mono
300dpi Standard = 0.5inch/sec colour, 1.5inch/sec mono
600dpi Best = 0.33inch/sec colour, 1inch/sec mono

Scan Modes

Scan to USB - RGB/Greyscale/BW, TIFF
Scan to PC - RGB/Greyscale/BW, Tiff, Jpeg, PDF, TiffG4
Copy - RGB/Greyscale/BW
Copy & Archive - RGB/Greyscale/BW, Tiff, Jpeg, PDF, TiffG4
Cloud connectivity is achieved by a link to Canon’s Direct Print & Share.
PRINT is achieved by using Canon’s Direct Print & Share.

Paper path

Face up, rear exit. Forward document transport only.
Document return guide(s) included.

Max. scan width

24" / 609.6mm

Min. scan width

6.2" / 157.5mm

Max. document width

26" / 660.4mm

Max. scan length

109" / 2768mm

Max & Min Document thickness

Designed to scan Canon iPF printer CAD paper.
Min = 0.07mm
Max = 0.5mm

Scan accuracy

Accuracy 0.2% +/-1 pixel

Network Modes

Standard Network Mode:
(Prevents the scanner exceeding the network's data rate capability).
• Copy uses on-board memory as a buffer, then communicates with printer via Ethernet.
• Scan to USB uses on-board memory as a buffer, then saves TIFF files only.
• Scan to PC uses on-board memory as a buffer before sending data via Ethernet to the Scan App Le.

Plus Network Mode(default):
(Uses full network capability and Scan App Le to improve functionality & productivity).
• Copy sends data via Ethernet to the Scan App Le which acts as a print spooler to free up the scanner sooner.
• Scan to USB uses the Scan App Le to convert file type to PDF/JPG and setting the correct date before saving to the USB stick.
• Scan to PC sends data via Ethernet directly to the Scan App Le to free up the scanner sooner.

Scan to USB

USB2, 128GB FAT32.

Scan to Network - Scan App Le

GB Ethernet. Scan App Le - Sets scan directory and file type.
Minimum PC specification: • Windows 7/8/10 - 32bit. • 100Mbs Ethernet. • Intel Celeron, Core-Duo, Core-2-Duo or 2.8GHz Hyper-Threading (HT) or AMD Dual-Core processors • 2GB RAM • High speed 7,200rpm Serial ATA (SATA) HDD with minimum 2GB for applications and 20GB free for images
Suggested PC specification: • Windows 7/8/10 - 64bit. • GB Ethernet. • Intel i3,i5 or i7 processors • 4GB RAM • SATA 6.0Gbit/sec USB3 on the motherboard and SATA 6.0Gbit 7,200 rpm HDD controller.

Languages for Scan App Le



Unique scanner model is only supported by Scan App Le only. Scanning cannot be started remotely.

Control Panel

3" touch screen display

Weight of scanner

5.28kg (11.6lbs) without Doc return guide

Dimensions width


Dimensions height


Dimensions depth

Without Doc Return Guide - Paper tray folded: 146mm
Without Doc Return Guide - Paper Tray flat: 193mm
With Doc Return Guide - Paper tray folded: 206mm
With Doc Return Guide - Paper Tray flat: 253mm

Power Supply

External PSU: Input: 100 - 240V, 50-60Hz
Output: 3.42A at 19V.

Max Power consumption

Standby (sleep): 0.6W
Idle: 11.7W
Scanning: 17.5W


Temp: 10-35C
Humidity: 10-90%

Acoustic Noise Levels

48.4dB gray scan

Environment Certificates

Energy Star
Europe : CE mark, Russia : EAC, Other countries : CB Certification

What's in the box?

• Le scanner
• Printer mounting brackets, fixings & 3mm tool
• 2 feet for desktop use
• 2 paper edge guides & paper refeed preventers
• 1 Document return guide
• Calibration target
• CD for Scan App Le software (includes PDF documentation: Le Scanner User Manual and Icon Guide per language and Quick Start Guide)
• Le Scanner Quick Start Guide.
• Ethernet cable (2 meter)
• Power Supply
Regional - Mains power cord(s) (2 meter)


Printer Type

5 Colour - 24"/609.6mm

Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

Number of Nozzles

Total: 15,360 MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each colour

Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 x 2 includes Non-firing nozzle detection and compensation system

Guaranteed Minimum Line Width

0.02 mm

Line Accuracy

±0.1 % or less

Ink Droplet Size

4 Picoliter per colour

Ink Capacity

Bundled Starter Ink: C,M,Y,Bk, MBk 90ml
Sales Ink: C,M,Y,Bk, MBK 130ml

Ink types

Dye/Pigment Reactive Ink
Dye: Cyan, Magenta, Yellow, Black
Pigment: 2 x Matte Black

OS Compatability

Windows 32 bit – XP, Vista, 7, 8, 8.1, 10, Server 2003/2003R2, Server 2008
Windows 64 bit – Vista, 7, 8, 8.1, Server 2003/2003R2, Server 2008/2008R2, Server 2012/2012R2
Mac: OSX – 10.6.8 - 10.10.x

Printer languages

GARO (Graphic Arts language with Raster Operations), HP-GL/2, HP RTL

Standard Interfaces

USB 2.0 High-Speed
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX/Auto-Negotiation
IEEE 802.3ab 1000base-T/Auto-Negotiation
IEEE 802.3x Full Duplex
IEEE 802.3az EEE


Printing Speed (A0 Size, Plain Paper)

0:28 min (Fast Economy Mode)
0:28 min (Fast Mode)
0:42 min (Standard Mode)

Printing Speed (A0 Size, Coated Paper)

0:43 min (Fast Mode)
1:17 min (Standard Mode)
2:05 min (High Quality Mode)


Standard Memory


Hard Drive


Paper Handling

Media Width

Roll paper: 10"/254mm - 24"/609.6mm
Cut sheet: 8"/203.2mm - 24"/609.6mm

Media thickness

Roll Unit: 0.07 - 0.8mm
Top Loading Manual Feed: 0.07 - 0.8mm
Front Loading Manual Feed: 0.5 - 1.5mm

Minimum Regular Format Size

Roll: 203.2mm Cut Sheet: 279.4mm

Maximum Printable Length

Roll: 18m (varies according to the OS and application) Cut Sheet: 1.6m

Maximum Media Roll Diameter

150.0 mm

Media Feed and Output

Roll Feed: One Roll, top loading, front output
Top Loading Manual Feed: One sheet, front output

Borderless Printing Width (Roll Only)

10" (254 mm), B4 (257 mm), A3 (297 mm), Banner (300 mm), 14" (356 mm), A2 (420 mm), A2+/17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm)


Physical Dimensions and Weight

Main Unit: 997 (W) x 698 (D) x 507 (H) mm
(Excluding consumables and printer stand)
Main unit with a printer stand and basket open: 997 (W) x 887 (D) x 1,062 (H) mm
Main Unit with basket in extended position for flatbed stacking: 997 (W) x 1100 (D) x 1062 (H) mm
Main unit: 46.0 kg
Main Unit + Printer stand: 56.7 kg

Software Included

Canon Printer Driver, Status Monitor/Print Monitor, Printer Driver ExtraKit – Free Layout and iR enlargement Copy, Printer Driver Optimization Module for AutoCAD, Media Configuration Tool, PosterArtist Lite (PC only), Print Plug-in for Microsoft® Office (PC only), Direct Print & Share, Custom Installer Creation Tool

Power and operating requirements

Power Supply

AC 100 - 240 V (50-60 Hz)

Power Consumption

Operation: 140W or less
Power off Standby: 0.5W or Less
Sleep mode Power Consumption: 5W or less
Time to enter sleep mode: Approx. 5 Minutes

Operating Environment

15 - 30°C, 10 - 80 % (Condensation free)

Acoustic Noise Levels

Operation: 47 dB approx.
Standby: 35 dB or less
Accoustic Power: 6.4 Bels
Based on ISO 7779


Europe: CE mark, Germany: TUV, Russia: EAC, Other Countries: CB Certification

Environment Certificates

ENERGY STAR (WW), RoHS (EU), WEEE (EU), ErP Directive (Lot6, 26), China RoHS, Chemical Substances Regulation, Battery certification (EU, Japan, USA, China, Taiwan), Packing material Regulation(EU, USA, Korea)


What's in the box?

1 x print head, 1 x set of starter ink tanks - (C, M, Y, BK, 2 x MBK) 90ml each, 3 inch core adapters, Set up guide, Basic guide, Manual CD-ROM, User software CD-ROM (Mac & Win), Carrying caution leaflet, A2 calibration sheet, Safety/Standard Environment leaflet, Media sample - sheets, PosterArtist Lite leaflet, PosterArtist Lite software CD-ROM, EU/UK Power Cord

Optional Accessories

Optional Items

Roll Holder Set: RH2-26
Stand/Basket: ST-27


User Replaceable Items

Ink Tank: PFI-107: C, M, Y, BK, 2 x MBK (130 ml)
Print Head: PF-04


Note 1

Maximum number of supported iPF printers = 15
Maximum number of PCs running Scan App Le = 15

Note 2

Scanner is manufactured by Global Scanning in the United Kingdom
